Standard: SJ1563-80
Product Characteristics:
1. Operating Temperature: -55°C to 200°C (including the temperature rise of the cable)
2. Conductor: Silver-plated copper conductor, Shielding: Silver-plated copper conductor
3. Insulation: Polytetrafluoroethylene (F4)
4. Sheath: Polyperfluorooctylene (F46)
5. Color: Insulation: White; Sheath: Transparent or other colors
Features/Uses:

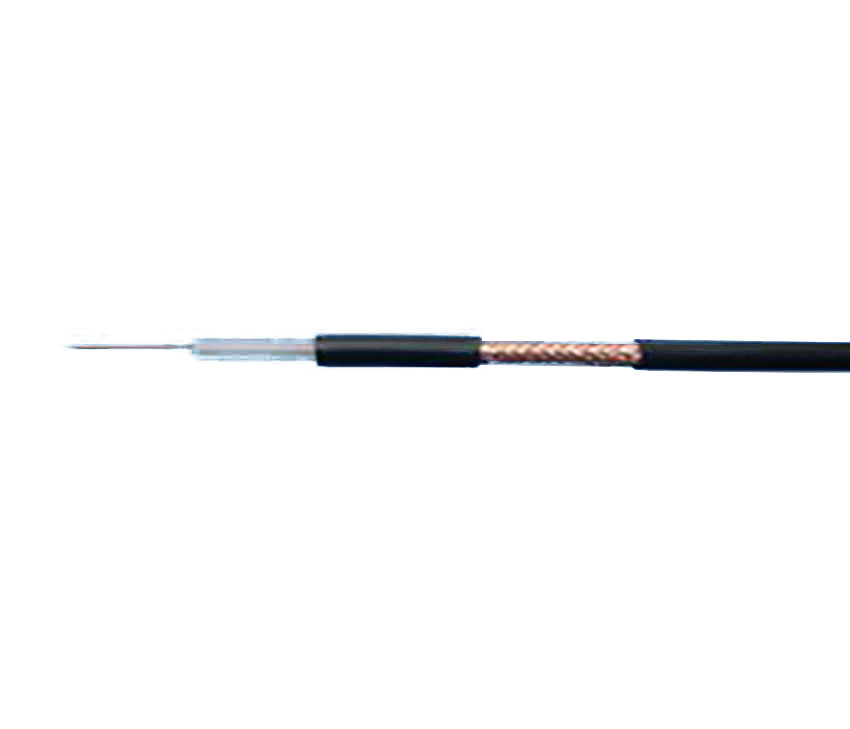

This is a cable used for fixed or mobile radio equipment, featuring small size, light weight, good flexibility, high temperature resistance, moisture resistance, corrosion resistance, and non-flammability. It is suitable for solid-core polytetrafluoroethylene insulated radio frequency coaxial cables used for transmitting radio frequency signals in radio communication, broadcasting, and related electronic equipment. It is allowed to operate at the lowest temperature of -55°C and the highest temperature of +200°C.
Delivery Requirements:
As agreed in the contract between both parties, short sections of no less than 10 meters can be delivered. The quantity should not exceed 10% of the total delivery length.

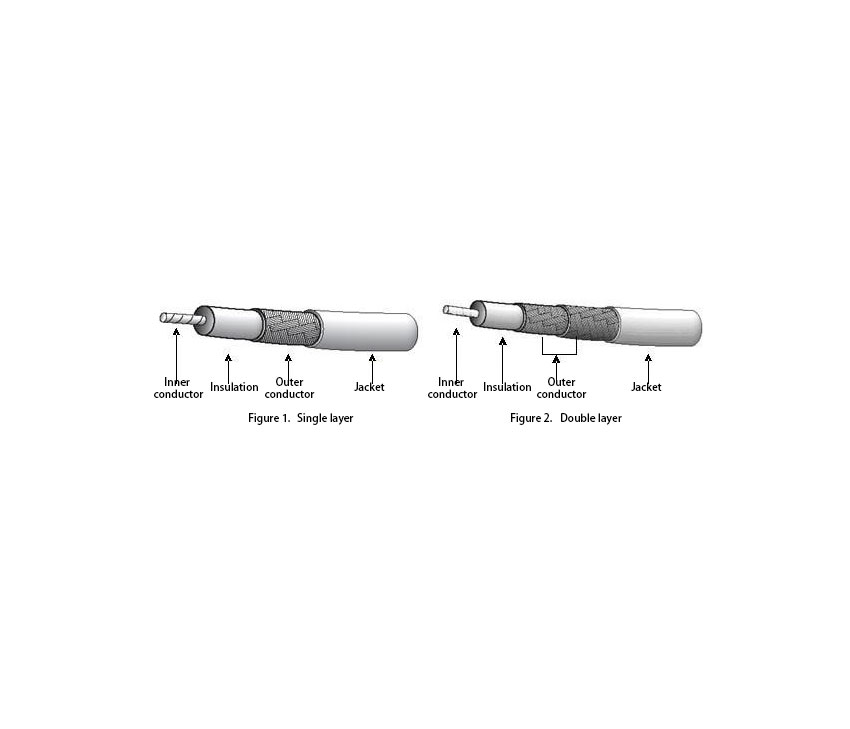

Cable structure data and main performance:
